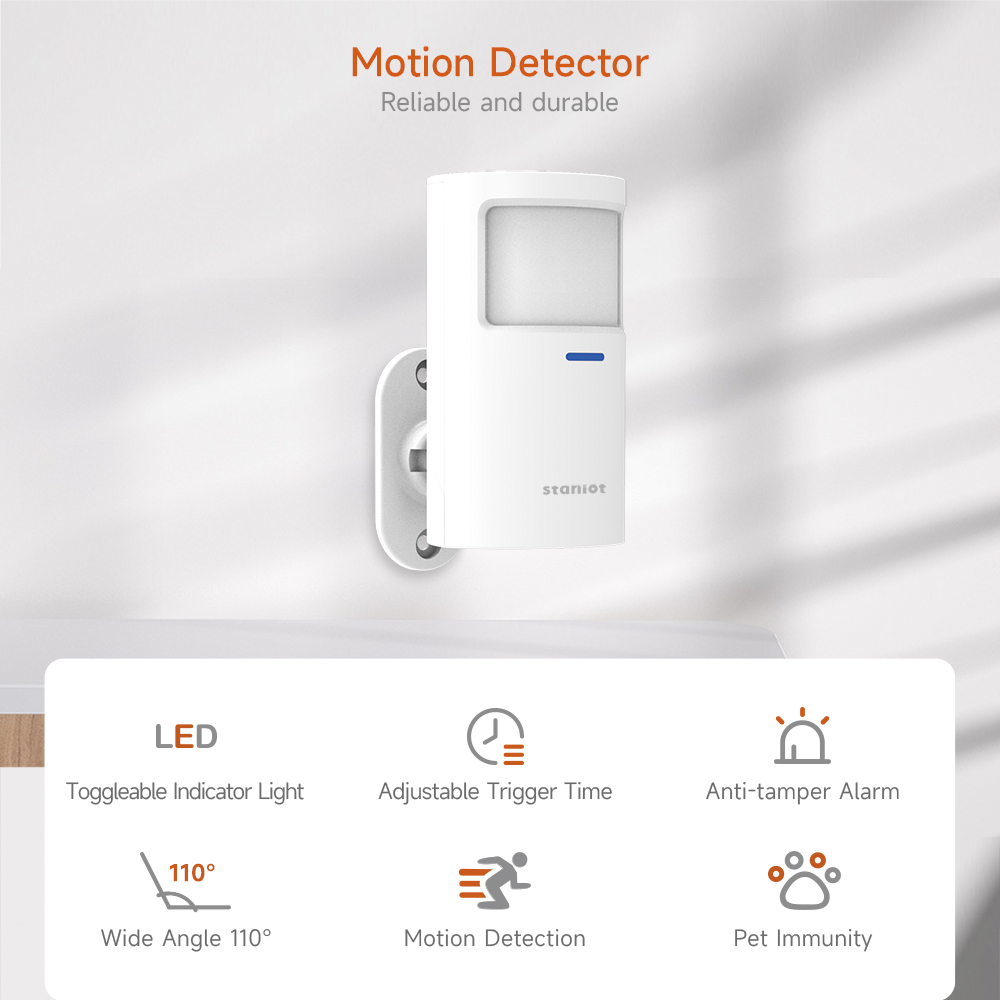

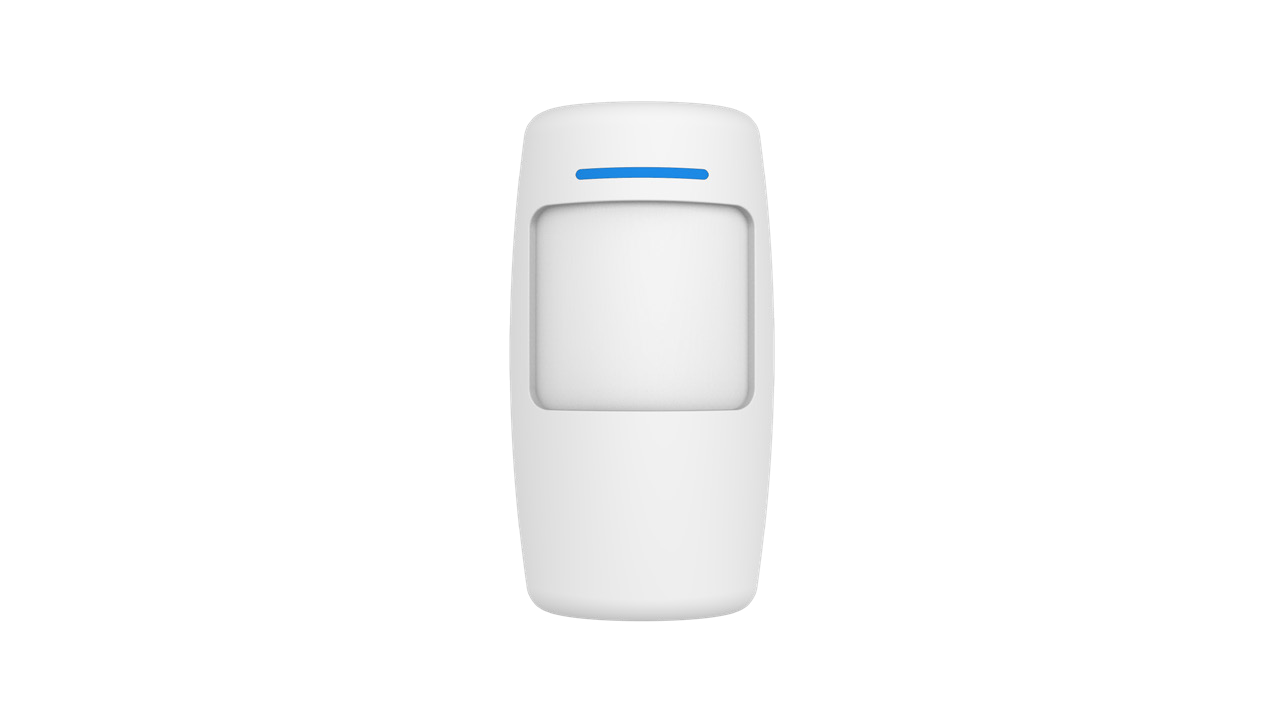

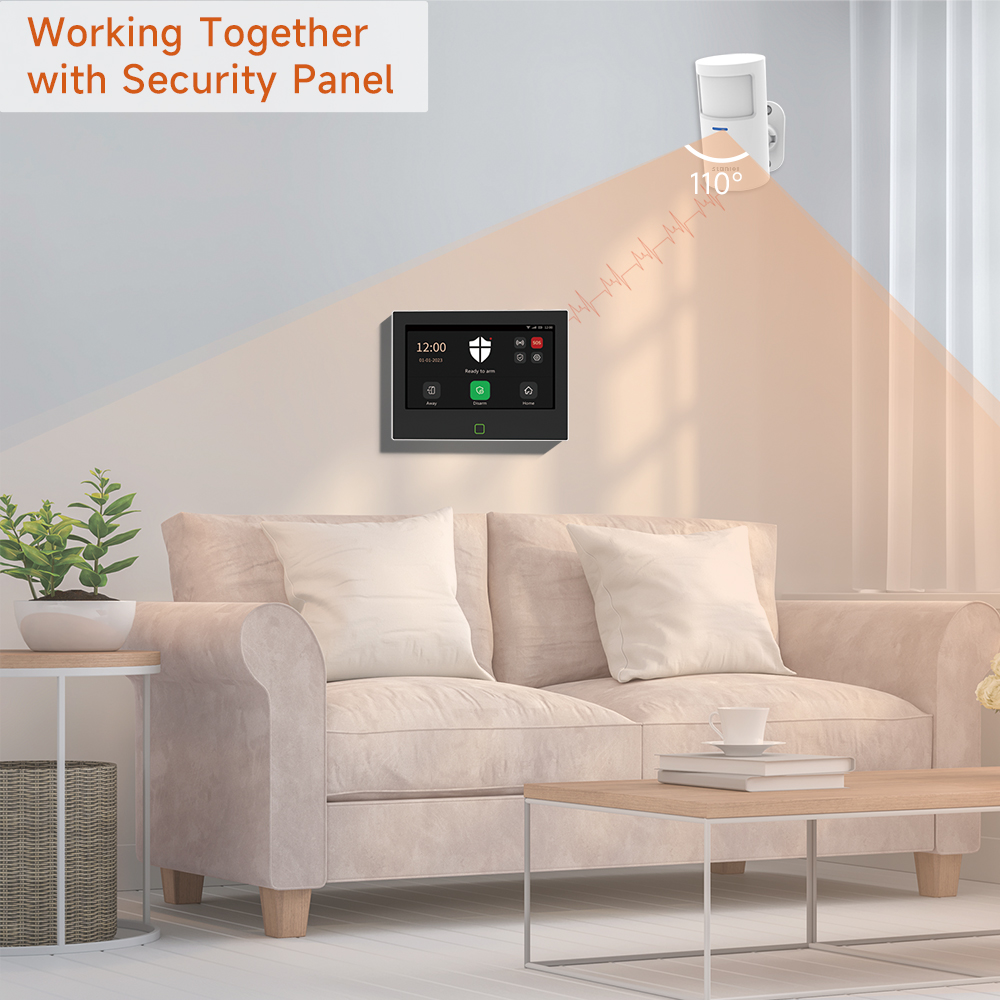

The wireless PIR motion sensor operates at 433MHz and provides security protection with an anti-tamper alarm for home alarm systems. When it detects an intrusion, it sends a signal to the security host. The communication range with the security panel is 100 meters. It needs to be integrated with gateway to run smoothly.
Battery specification | AA battery ×2 |
Standby current | ≤10μA |
Alarm current | ≤15mA |
Detection angle | 110° |
Working temperature | -10°C~+50°C |
Relative humidity | <95% (no condensation) |
Wireless parameters | 433MHz, eV1527 |
Product size | 50×92mm |
