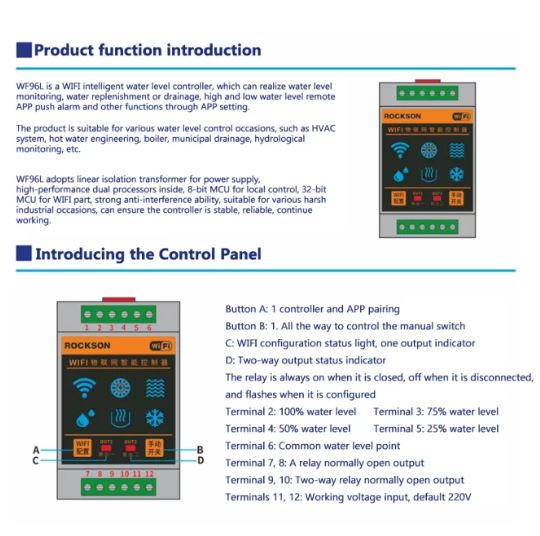

WIFI intelligent water level controller, which can be set by APP to realize water level monitoring, Water supplement or drainage, high and low water level remote. APP push alarm notification.
Package included:
1 x English manual instruction
1 x wifi water level controller

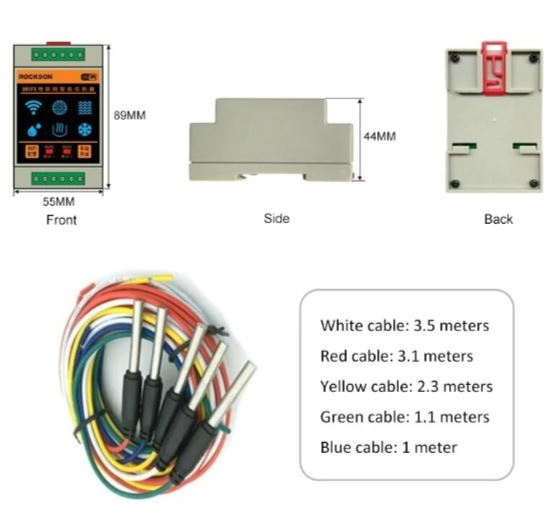

5 x water level sensors with different cable lenth.
Remark:
White cable: 3.5 meters
Red cable: 3.1 meters
Yellow cable: 2.3 meters
Green cable: 1.1 meters
Blue cable: 1 meter
Size of controller | 89mm x 55mm x 44mm |
Power voltage | AC220V |
Power consumption | less than 2W |
Limited running time of relay output 1 | 0 to 720 minutes settable via App. Each setting progresses is 5 minutes, 0, 5, 10, 15, ………….710, 715, 720 |
Time delay setting of relay output 1 | 0 to 30 seconds settable via App. |
Relay outputs | two relay outputs(normal open) |
Working environment | -10℃ to +50℃ |
Wi-Fi | WIFI 2.4GHZ b/g/n, not support 5G WIFI. |
Real-Time Supervision | APP can display the current water level |
Two relay outputs | Relay 1 control water level, Relay 2 for dry heating protection. |
